What is the iFixit repairability score for the iPhone Duo?
The iPhone Duo has earned a repairability score of 5 out of 10, which represents the highest rating iFixit has ever assigned to a foldable device. This score reflects a mixed engineering approach where certain modular components are accessible, while the core folding mechanism remains highly complex. According to the iFixit team, Apple has "done well" for a first attempt in the foldable market, particularly when compared to the structural difficulties found in previous generations of folding technology.
The scoring system used by iFixit evaluates how easily a consumer or professional technician can access, remove, and replace specific components. For the iPhone Duo, the score is bolstered by the relatively straightforward removal of the outer screen and several battery cell units. This modularity is a departure from many contemporary foldables where batteries are often deeply integrated into the chassis, making replacement a high-risk operation.
Key successes in component accessibility
One of the standout features noted in the teardown is the ease with which the outer trim and battery units can be handled. Unlike the Samsung Galaxy Z Fold 8, where the outer trim was noted to be difficult to remove without damage, the iPhone Duo's exterior remained intact during the iFixit extraction process. This suggests a more refined approach to the device's structural assembly, allowing for easier access to the peripheral hardware that often requires service due to impact or wear.
How does dust ingress affect the iPhone Duo hinge?

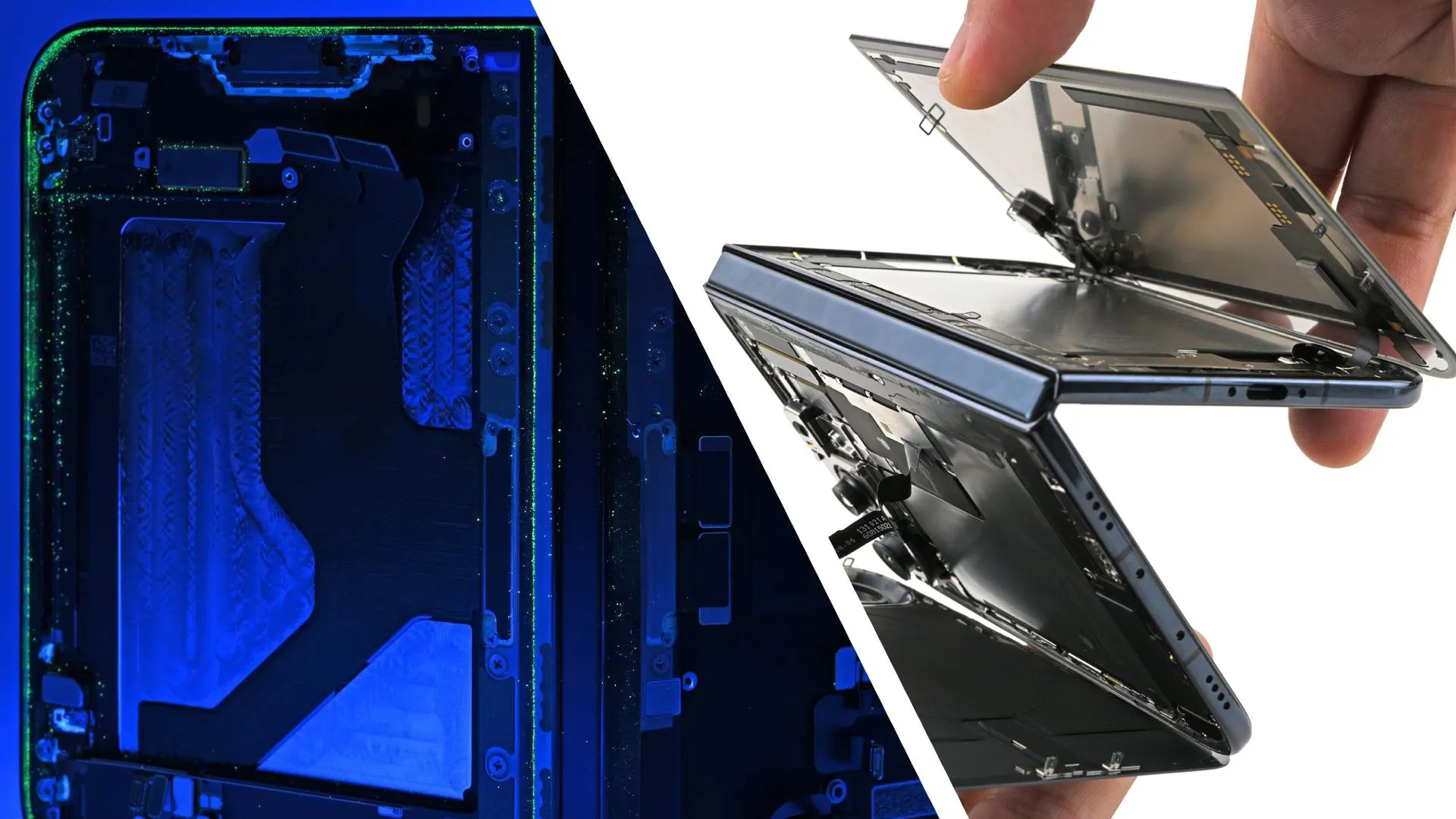

Despite an official IP68 rating for dust and water resistance, the iPhone Duo shows vulnerability to fine particulate matter entering its hinge mechanism. During the iFixit teardown, technicians applied dust that glows under ultraviolet light to test the device's sealing capabilities. The results indicated that dust successfully reached the internal gears, springs, and metal joints of the hinge.
While the iPhone Duo performed better than competitors like the Pixel 11 Pro Fold or the Galaxy Z Fold 8 in terms of the total volume of dust collected, the ingress was still significant enough to cause mechanical issues. The iFixit team observed that the dust caused the hinge to start "crunching," a sign of friction within the moving parts. This finding aligns with observations made during the JerryRigEverything durability tests, where the device also showed susceptibility to environmental contaminants.
The presence of dust in the hinge is a critical concern for long-term durability. Even if the device maintains its IP68 rating for liquid protection, the mechanical movement of the hinge creates a dynamic environment where particles can be drawn into the assembly. The iFixit team noted their disappointment, stating, "We hoped Apple would solve this problem, but sadly it seems like the Duo's got the same dirt-phobia as its folding cousins."
Why is repairing the inner screen and hinge so difficult?
The most significant hurdles for iPhone Duo owners are the main inner screen and the hinge assembly, both of which are described as being extremely difficult to service. The complexity of how these parts are integrated into the device means that any repair involving the central display requires an immense amount of time, technical skill, and financial investment. Because the screen and hinge are so tightly coupled, replacing one often necessitates the replacement or extensive work on the other.
The difficulty stems from the sophisticated engineering required to make a foldable device functional and aesthetically pleasing. Apple has utilized a complex arrangement of gears, springs, and metal joints to facilitate the folding motion. This density of components makes it nearly impossible to perform a non-destructive repair once the device is opened.
The engineering of the display crease
Apple has employed advanced techniques to mitigate the visual impact of the display crease, which is a common aesthetic and structural weakness in foldable phones. The teardown revealed that Apple uses a "very good disguise" for the crease through a combination of specific pixel arrangements and a matte nano-texture finish on the screen. While this improves the user experience by making the crease less noticeable, it adds a layer of complexity to the screen's manufacturing and eventual repair.
What causes the reported cracked screens on the iPhone Duo?
iFixit has provided a potential technical explanation for the reports of cracked screens among some iPhone Duo users. The investigation suggests that the stress caused by the main display crease might be exerting undue pressure on the central support bar of the hinge. This mechanical tension could potentially lead to structural failures in the display panel over time.
It is important to clarify that this remains a hypothesis based on the teardown findings. The iFixit team noted that further investigations will be required to confirm whether this pressure-induced stress is the definitive cause of the reported cracks. However, the correlation between the crease's location and the hinge's support structure provides a plausible mechanical pathway for such failures.
Frequently asked questions
What is the repairability score of the iPhone Duo?
The iPhone Duo has received a 5 out of 10 repairability score from iFixit. This is the highest score ever awarded to a foldable phone by the organization, indicating that while it is difficult to repair, it is more accessible than its predecessors.
Can the iPhone Duo resist dust and water?
The device carries an IP68 rating, meaning it is officially rated for protection against dust and water. However, iFixit's testing showed that dust can still enter the hinge mechanism, which may lead to mechanical issues like crunching sounds over time.
Is the iPhone Duo screen easy to fix?
No, the inner screen is one of the most difficult components to repair. Due to the complex assembly involving the hinge and the specialized nano-texture finish, replacing the main display is described as a task that takes a lot of work and money.
How does Apple hide the screen crease?
Apple uses a combination of pixel arrangement and a matte nano-texture finish to disguise the crease on the main display. This approach aims to make the transition between the two halves of the screen less visible to the user.
What are the easiest parts to replace on the Duo?
The outer screen and certain battery cell units are relatively easy to remove compared to other foldable devices. This modularity helps contribute to the device's record-high repairability score for its category.
Key takeaways
- The iPhone Duo earned a 5/10 repairability score, a record for foldable phones.
- Battery cells and the outer screen are relatively easy to access and remove.
- Dust can enter the hinge mechanism despite the device's IP68 rating.
- The inner screen and hinge are the most expensive and difficult parts to repair.
- The display crease is disguised using a matte nano-texture and pixel arrangement.
The future of Apple's foldable engineering
The iFixit teardown of the iPhone Duo reveals a device that is a significant step forward in foldable engineering but remains tethered to the inherent vulnerabilities of the form factor. Apple has successfully addressed some modularity concerns, such as battery accessibility, yet the fundamental struggle with dust ingress and the extreme complexity of the central display remains. As the foldable market matures, the ability to balance sophisticated, seamless designs with practical, cost-effective repairability will likely become the next major battlefield for smartphone manufacturers.
