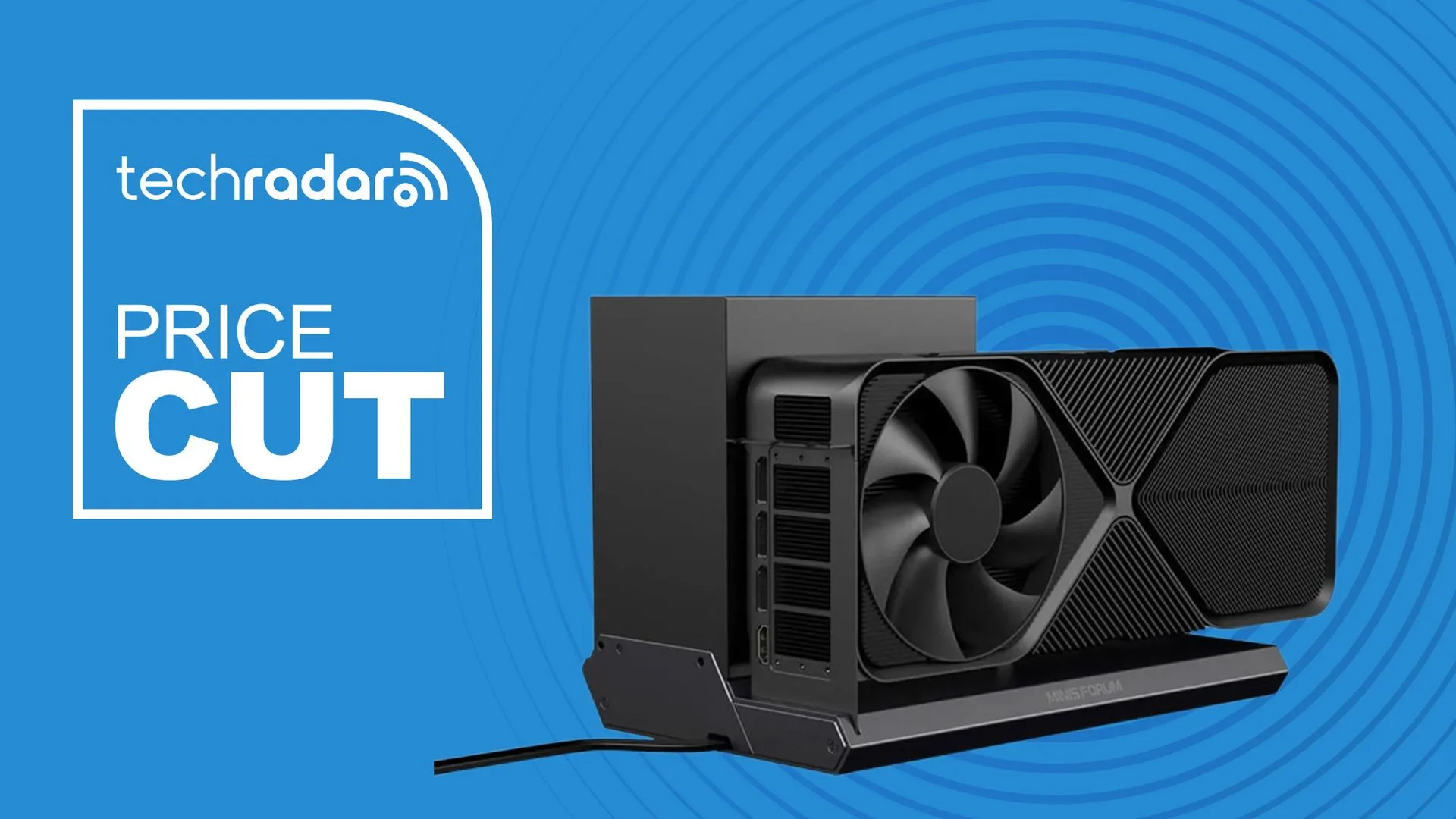

What is the Minisforum DEG1 and how does it function?
The Minisforum DEG1 is a specialized docking station intended to bridge the gap between compact mini PCs and high-performance desktop graphics cards. Unlike standard mini PCs that rely on integrated graphics for everyday tasks, the DEG1 allows users to expand their computing power for intensive workloads like video rendering, 3D modeling, and high-end gaming.
Technically, the device acts as an open-frame interface. It features a full-length PCIe x16 slot, which provides the physical compatibility necessary to house large, modern desktop GPUs. The connection to the host computer is handled through an OCuLink 4i uplink, which operates on a PCIe 4.0 x4 standard. This specific architecture is designed to provide a more direct path for data than traditional external connections.
It is important to note that the DEG1 is a skeletal framework for connectivity. It does not include the graphics card itself, nor does it come with a power supply. To build a functional external GPU (eGPU) setup, users must provide their own desktop GPU and a compatible power supply unit (PSU). The dock supports both standard ATX and SFX power supply formats, offering flexibility for different build preferences.
Why choose OCuLink over Thunderbolt or USB4?
The primary technical advantage of the Minisforum DEG1 lies in its use of the OCuLink interface rather than Thunderbolt or USB4. In the realm of external graphics, bandwidth efficiency is the most critical factor for maintaining performance.
While Thunderbolt and USB4 are more widely available on consumer laptops and mini PCs, they often introduce significant latency and bandwidth bottlenecks when driving a discrete GPU. OCuLink, by contrast, provides a more direct PCIe connection. According to current hardware performance standards, the PCIe 4.0 x4 OCuLink connection used in the DEG1 loses less performance during data transfer compared to its Thunderbolt counterparts.
This reduction in overhead means that the desktop graphics card can operate closer to its native performance levels. For users who are sensitive to frame rate drops or require high throughput for professional rendering tasks, the choice of OCuLink over USB-based protocols can be the deciding factor in whether an eGPU setup is viable or merely a compromise.
What are the technical limitations and requirements?
Despite its high performance potential, the Minisforum DEG1 has strict operational requirements that users must understand before purchasing. The most significant limitation is the lack of hot-swapping support.
Critical Usage Warnings
OCuLink does not support hot-plugging. This means that users cannot connect or disconnect the graphics card while the computer is running. To avoid hardware damage or system instability, you must completely shut down your PC before making any changes to the physical connection. This distinguishes it from USB-based eGPU enclosures, which are designed for convenience and ease of use in mobile environments.
Additionally, the hardware compatibility is narrow. The DEG1 is strictly an OCuLink-only device. If your mini PC or handheld gaming device only features Thunderbolt or USB4 ports, the DEG1 will not function. Users must verify that their host device has a dedicated OCuLink port before proceeding with a purchase.
Is the $109 price point a genuine discount?
The current price of $109 at Newegg is positioned as a significant reduction from the $199 list price, but a deeper look at the product's history provides necessary context. While the advertised discount suggests a 45% price cut, the actual value proposition is more nuanced.
The Minisforum DEG1 originally launched in 2024 with a price point of approximately €90. Consequently, the current $109 price is closer to its original launch value than a massive clearance markdown. However, even when viewed through this lens, the device remains an exceptionally low-cost entry point for an eGPU dock capable of supporting flagship hardware like the Nvidia RTX 4090.
For users who already own a spare desktop GPU and a compatible ATX or SFX power supply, the DEG1 represents one of the most cost-effective ways to transform a mini PC into a high-performance workstation. The cost of entry is essentially just the dock and the existing components, making it a highly efficient upgrade path for enthusiasts.
How does the DEG1 compare to higher-end alternatives like the DEG2?
For users with more complex needs or a higher budget, Minisforum offers the DEG2, which serves as a more comprehensive docking solution. While the DEG1 focuses on being a simple, low-cost OCuLink bridge, the DEG2 is a multi-functional hub.
The DEG2 expands the utility of the connection significantly. While the DEG1 is limited to the GPU connection, the DEG2 includes features such as:
- Two Thunderbolt 5 ports (80Gbps), with one port capable of supplying 140W to the host device.
- An integrated OCuLink (64Gbps) port.
- An M.2 2280 SSD slot for additional high-speed storage.
- 2.5G Ethernet and USB 3.2 ports for expanded connectivity.
The DEG2 is designed for users who want a single-cable solution that handles graphics, high-speed storage, and peripheral connectivity simultaneously. While the DEG1 is the choice for budget-conscious enthusiasts looking for a specific GPU boost, the DEG2 is aimed at power users who require a complete desktop replacement experience via a single dock.
FAQ: Minisforum DEG1
Does the Minisforum DEG1 include a power supply?
No, the Minisforum DEG1 does not include a power supply. It is designed to support standard ATX and SFX power supplies, which you must provide separately to power the graphics card and the dock itself.
Can I plug the DEG1 into a Thunderbolt port?
No, the DEG1 is strictly an OCuLink-only dock. It is not compatible with computers that only offer Thunderbolt or USB4 connections. You must ensure your mini PC or handheld has a dedicated OCuLink port.
Is hot-plugging supported with this dock?
Hot-plugging is not supported with the OCuLink interface used by the DEG1. You must shut down your computer entirely before connecting or disconnecting the dock to prevent potential hardware damage or system errors.
What kind of graphics cards can I use?
The DEG1 features a full-length PCIe x16 slot, meaning it can accommodate most standard desktop graphics cards, including high-end models such as the Nvidia RTX 4090, provided you have a sufficient power supply.
Is the $109 price a recent sale?
While the $109 price is a reduction from the $199 list price, it is close to the product's original 2024 launch price of approximately €90. It remains a competitive option for OCuLink users.
Key takeaways
- The Minisforum DEG1 provides an affordable OCuLink-to-PCIe x16 connection for external GPUs.
- It offers better performance efficiency than Thunderbolt-based eGPU docks due to the OCuLink interface.
- Users must provide their own desktop graphics card and an ATX or SFX power supply.
- Hot-swapping is not supported; the host PC must be shut down before connecting the dock.
- The current $109 price makes it a highly accessible option for owners of OCuLink-enabled mini PCs.
Conclusion
The Minisforum DEG1 serves as a specialized, high-efficiency tool for enthusiasts looking to overcome the graphical limitations of mini PCs. By leveraging the OCuLink interface, it provides a lower-latency path for desktop GPUs than traditional USB-based solutions. While the lack of hot-swapping and the requirement for separate power and GPU components may deter casual users, it remains an unbeatable value for those with existing desktop hardware. For the specific niche of OCuLink-equipped devices, it offers a streamlined, cost-effective route to desktop-class computing power.
